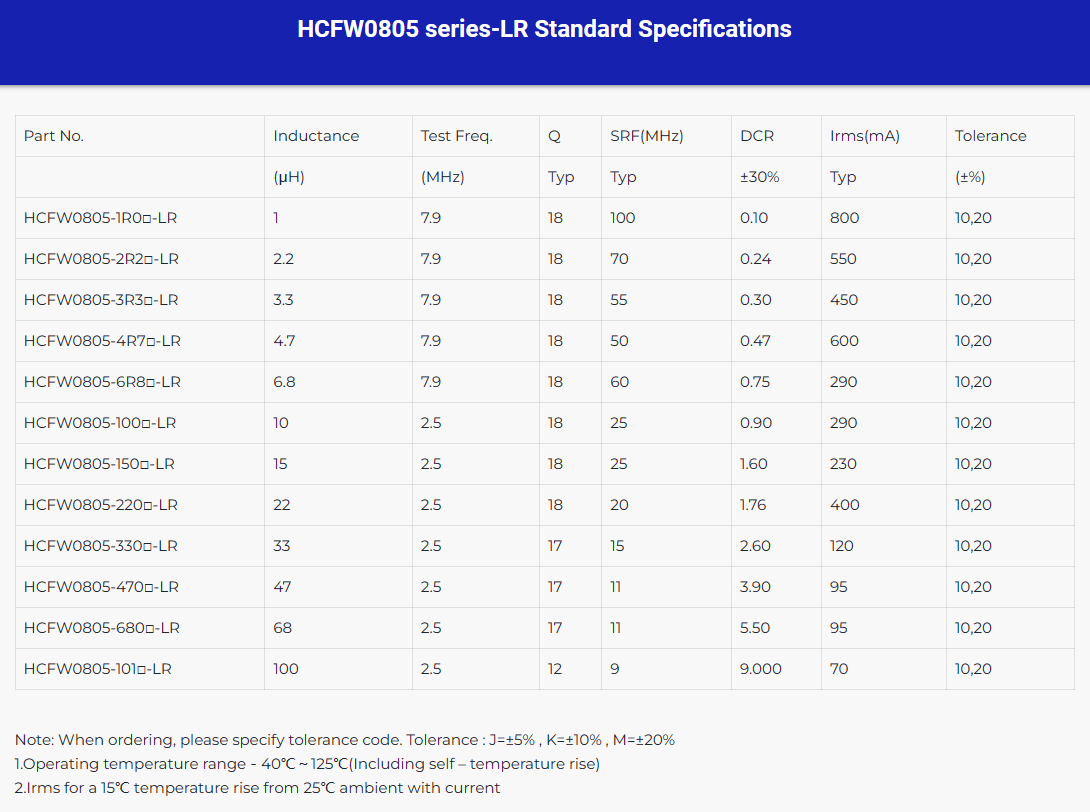

HCFW0805 series-LR Standard Specifications

Features:

RoHS Compliant
Ceramic body and wire wound construction provide high SRFs
Exceptional Q values even at high frequencies
Highest possible SRFs as well as excellent Q values
The non-magnetic coil form assures utmost thermal stability,predictability and batch consistency

Applications：

FW products for cellular phone
GPS receiver
Base Station
Repeater
Wireless LAN/ mouse/ keyboard/ earphone
Remote control

Ordering Code:

Type
Dimensions
Inductance
Inductance Tolerance
Tail code

J : ±5% K : ±10% H : ±3%
G : ±2% B : ±0.1nH

Shape and Dimensions

Recommended Pattern

TYPE	A	B	C	D	E	F	G	H	I	J
HCFW0402	1.12max	0.65max	0.66max	0.25	0.51	0.23	0.56	0.66	0.36	0.46
HCFW0603	1.6±0.2	1.12±0.1	0.9±0.2	0.50	0.76	0.33	0.86	1.02	0.64	0.64
HCFW0603-LR	1.6±0.2	1.02±0.1	0.9±0.2	0.50	0.76	0.33	0.86	1.02	0.64	0.64
HCFWC0603-LRENC	1.6±0.2	1.02±0.1	0.9±0.2	0.50	0.76	0.33	0.86	1.02	0.64	0.64
HCFW0805	2.4max	1.72max	1.52max	0.7	1.27	0.45	1.0	1.02	1.02	0.76
HCFW0805-LR	2.4max	1.72max	1.52max	0.7	1.27	0.45	1.0	1.02	1.02	0.76
