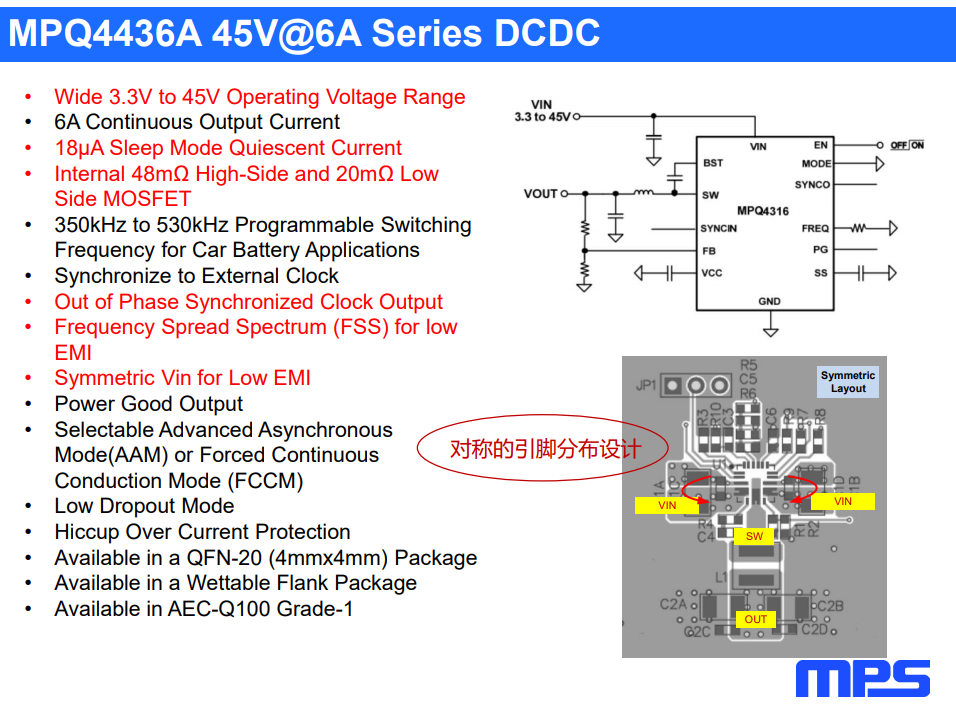

MPS-MPQ4436A 45V@6A Series DCDC

• Wide 3.3V to 45V Operating Voltage Range

• 6A Continuous Output Current

• 18μA Sleep Mode Quiescent Current

• Internal 48mΩ High-Side and 20mΩ Low Side MOSFET

• 350kHz to 530kHz Programmable Switching Frequency for Car Battery Applications

• Synchronize to External Clock

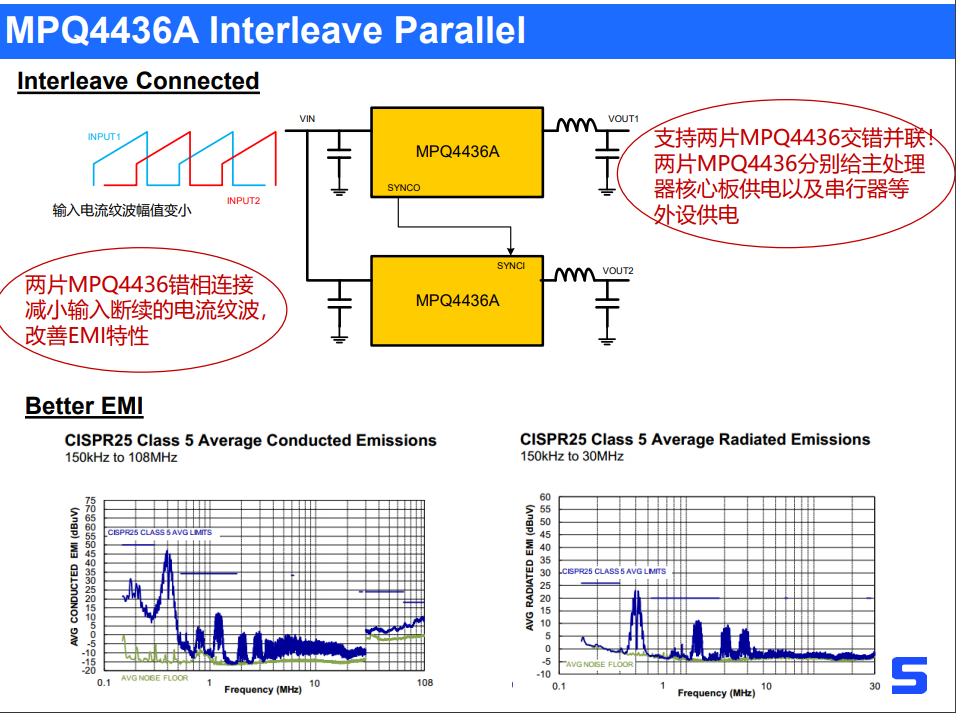

• Out of Phase Synchronized Clock Output

• Frequency Spread Spectrum (FSS) for low EMI

• Symmetric Vin for Low EMI

• Power Good Output

• Selectable Advanced Asynchronous Mode(AAM) or Forced Continuous Conduction Mode (FCCM)

• Low Dropout Mode

• Hiccup Over Current Protection

• Available in a QFN-20 (4mmx4mm) Package

• Available in a Wettable Flank Package

• Available in AEC-Q100 Grade-1
